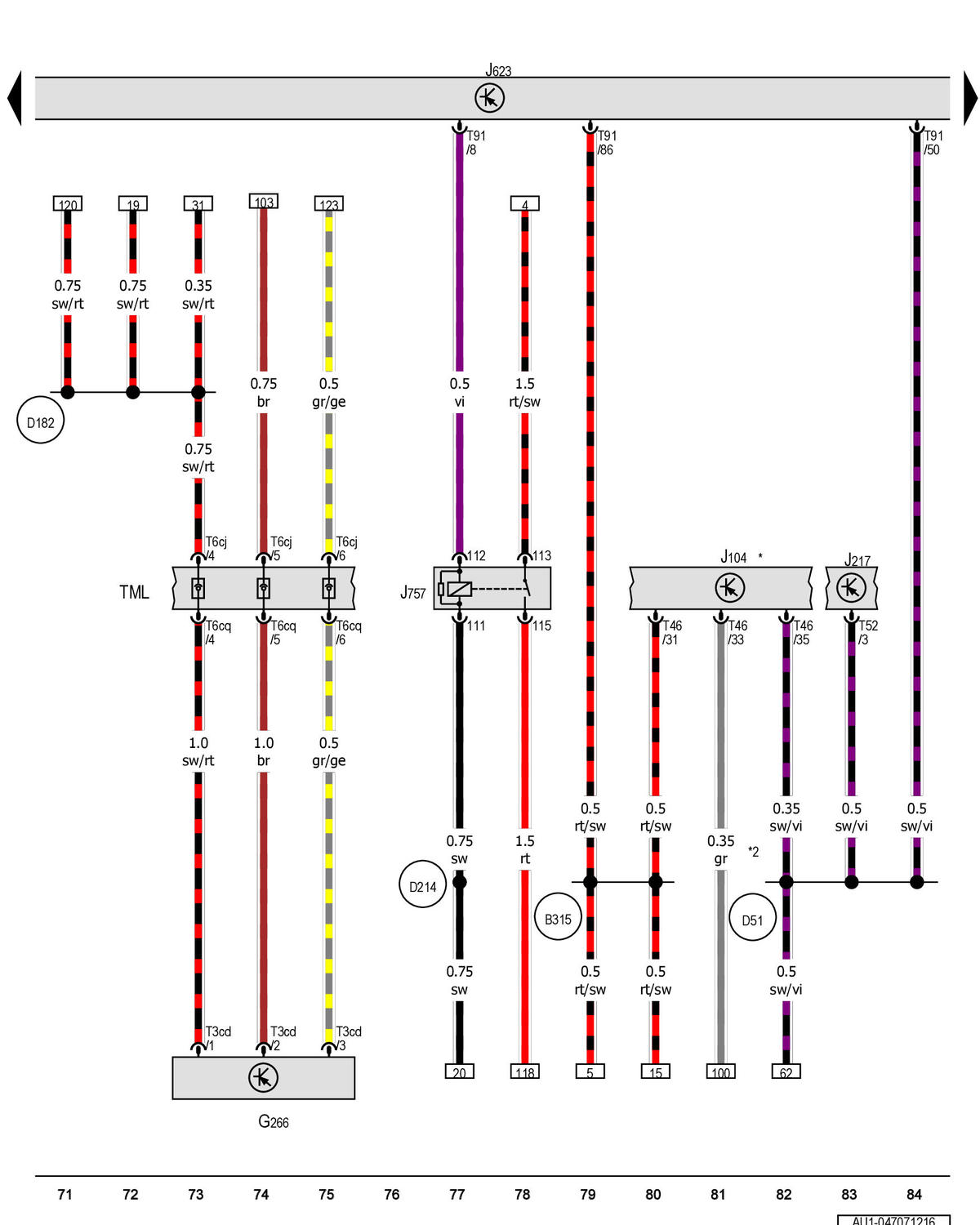

Oil Level Thermal Sensor, Abs Control Module, Transmission Control Module, Engine Control Module, Engine Component Power Supply Relay: Notes

GWWAU1-047071216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
