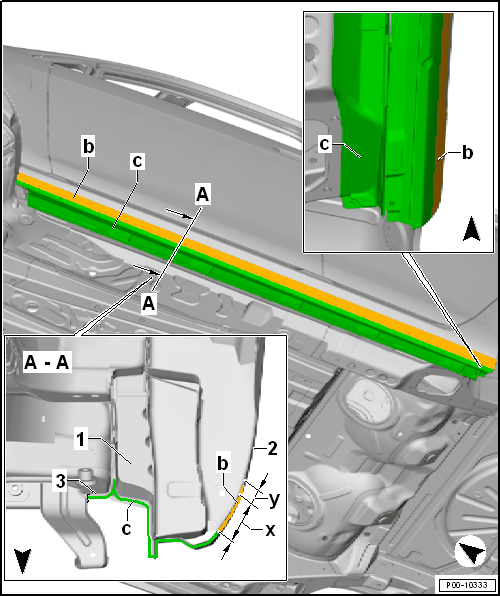

Side Sill with Sectional View Underbody Protection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. 1 -Inner Side Sill
2. 2 -Bottom Section
3. 3 -Outer Side Panel
4. b -Underbody Protection
   • Layer thickness 0.5 mm
   • Height -x- = 35 mm equals 0.5 mm layer thickness
   • Height -y- = 10 mm approximately 0.3 mm layer thickness tapering off
5. c -Underbody Protection
   • Layer thickness 1.2 mm
