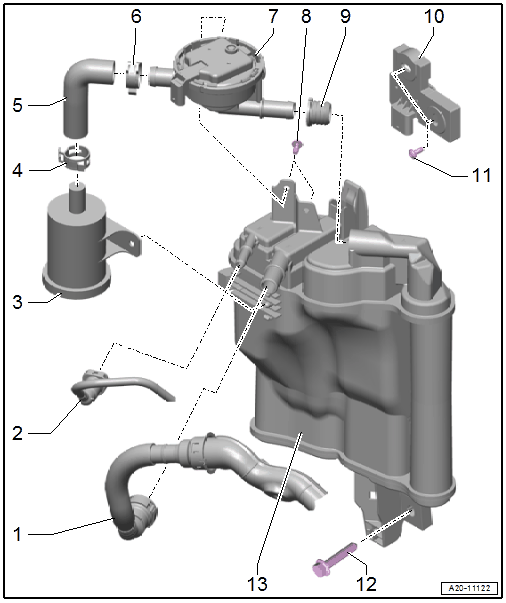

Overview - EVAP System
- Vent Line
- To the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Vent Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Clipped to the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Air Filter
- For the leak detection system
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Clipped in at EVAP canister -item 13-
- Removing and installing. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING .
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Catalog.
- Hose
- Hose Clamp
- Must be appropriate for the model type. Refer to the Parts Catalog.
- Fuel Tank Pressure Sensor -G400-
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Removing and installing. Refer to Fuel Tank Pressure Sensor -G400- , REMOVING AND INSTALLING .
- Bolts
- 1.8 Nm
- Quantity: 2
- Seal
- Insert into the EVAP canister
- Replace after removing. Refer to the Parts Catalog.
- Fuel Tank Leak Detection Control Module -J909-
- Component location: At the right on the fuel tank
- Removing and installing. Refer to Fuel Tank Leak Detection Control Module -J909- , REMOVING AND INSTALLING .
- Bolts
- 3 Nm
- Quantity: 2
- Bolt
- 20 Nm
- EVAP Canister
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING .
