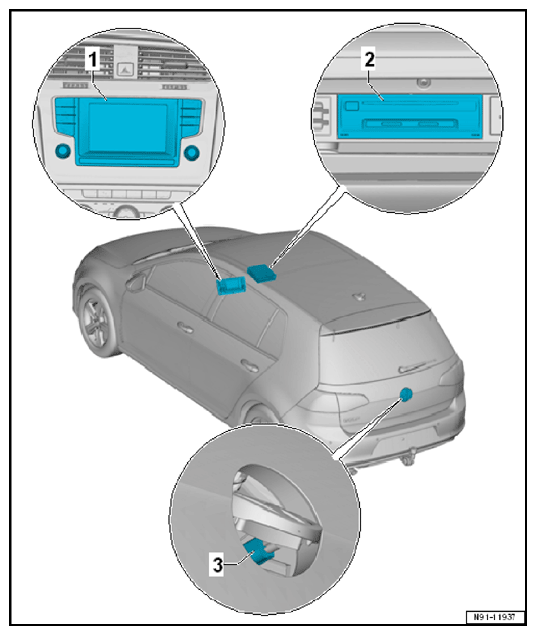

Component Location Overview - Rearview Camera System
- Front Information Display Control Head - J685-
- In center console, front
- Removing and installing. Refer to Infotainment System Display, Removing and Installing
- Information Electronics Control Module 1 - J794-
- In the glove compartment
- Removing and installing. Refer to Information Electronics Control Module 1 J794, Removing and Installing
- Rearview Camera - R189-
- Pivoting emblem with Rearview Camera - R189- and pivoting motor in the rear lid
- Removing and installing. Refer to Rearview Camera - R189-, Removing and Installing
