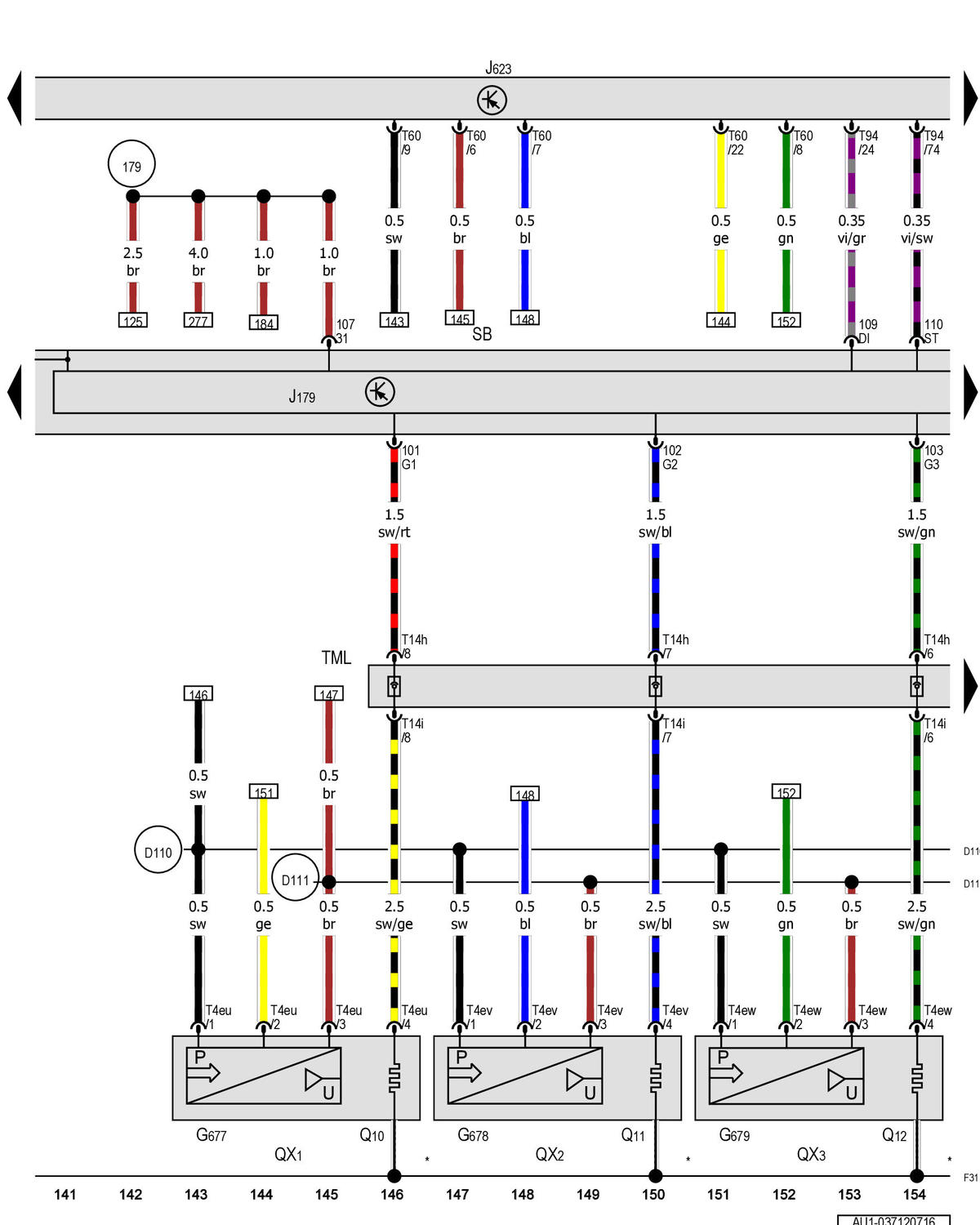

Automatic Glow Time Control Module, Engine Control Module: Notes

GWWAU1-037120716

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
