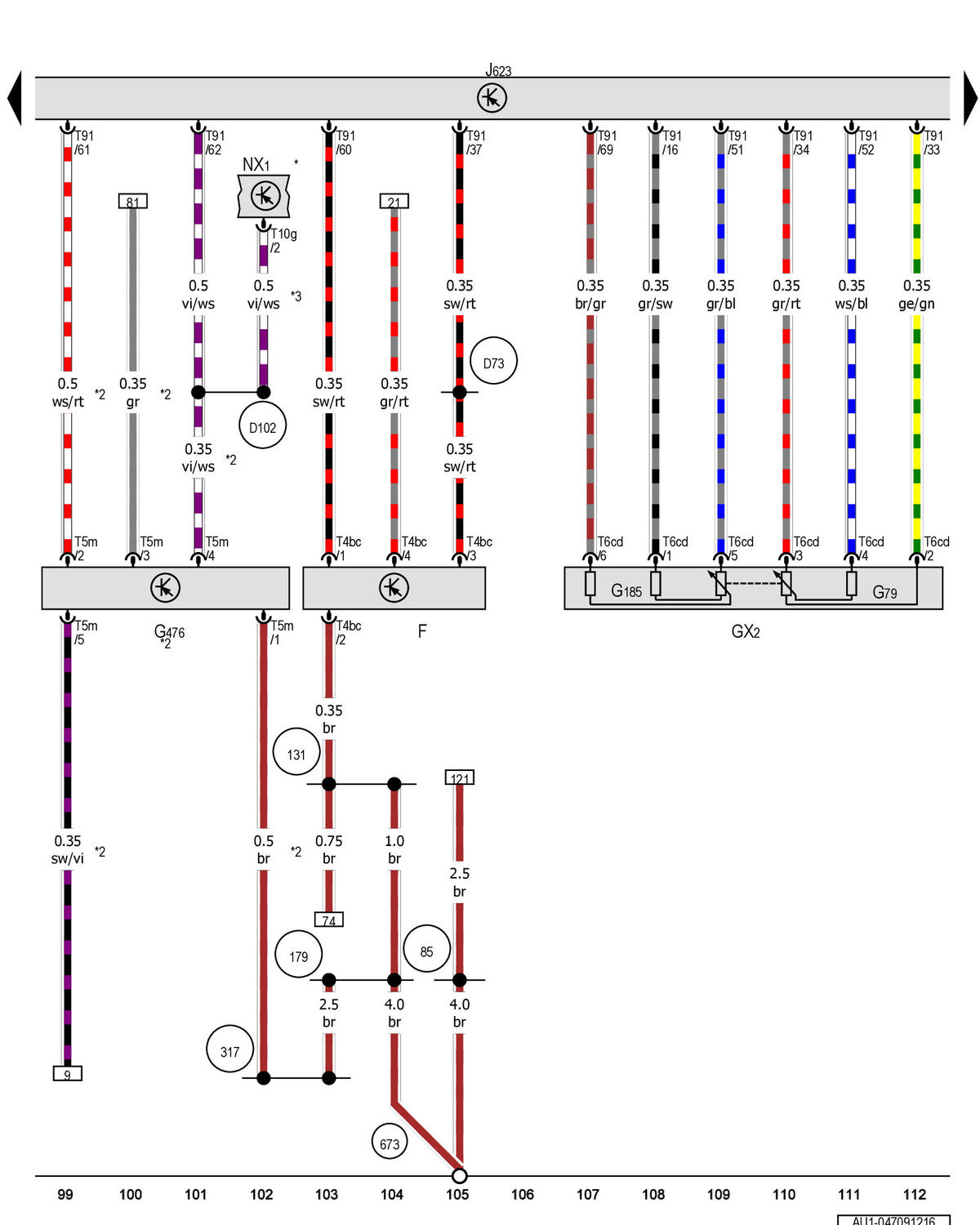

Brake Lamp Switch, Accelerator Pedal Module, Clutch Position Sensor, Engine Control Module, Transmission: Notes

GWWAU1-047091216Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
