Transmission Tightening Specifications: Notes

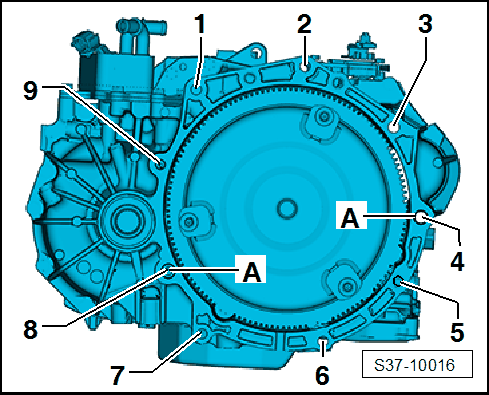

1.6L - 81 kW And 1.4L - 110 kW Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

When removing and installing pay attention to the different bolt lengths.

If necessary the bolt length may differ from position in the illustration.

Item	Bolt	Quantity	Nm
1	M12 x 55	1	80
2	M12 x 55	1	80
3 ¹⁾	M12 x 155	1	80
4 ¹⁾	M12 x 170	1	80
5	M10 x 65	1	40
6	M10 x 55	1	40
7	M10 x 55	1	40
8 ²⁾	M12 x 70	1	80
9 ²⁾	M12 x 70	1	80
A	Alignment sleeves for centering
¹⁾ also secures the starter. ²⁾ are attached from the engine side.

1.8L - 125 kW Engine

NOTE:

The -arrows- point toward the alignment sleeves in the engine.

When removing and installing pay attention to the different bolt lengths.

If necessary the bolt length may differ from the illustration.

The starter bolts for the starter are M12 x 155 if necessary.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -
Direction of Travel
M12 -
- 80 Nm
- If the torque wrench is used with the Insert Tool - 18mm:T10179 : 65 Nm
M10 -
- 40 Nm
- These bolts are located inside the lower flange

Left Assembly Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace all the bolts from the left subframe mount.

-- Position all the new bolts first by hand.
