Vehicles with Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

-- Remove the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -2- for the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289- from the control arm -3-.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Front Level Control System Sensor -G78- -2- or Right Front Level Control Sensor -G289-

Continuation for All Vehicles.

-- Remove the clips -1 and 2- for the wiring harness -3- from the subframe and the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

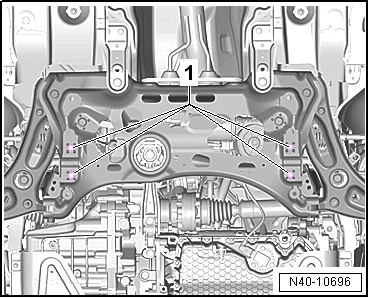

-- Remove the stabilizer bar bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the steering gear bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the steering gear out of the subframe alignment sleeves.

-- Place the :VAS6931  or :VAG1383A  -1- under the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe (refer to SUBFRAME, SECURING ) and lower it approximately 10 cm.

-- Remove the expanding clip -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the subframe with the :VAS6931  or :VAG1383A  until the stabilizer bar can be removed toward the rear.
