Vehicles with Level Control System Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

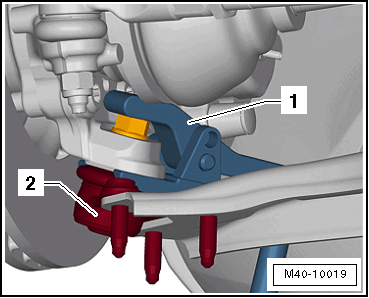

-- Remove the nut -1-.

-- Remove the bracket -2- for the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289- from the control arm -3-.

Continuation for All Vehicles

-- Remove the nuts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the drive axle slightly off the wheel hub.

If the drive axle cannot be pulled out of the wheel bearing, then the drive axle can be pushed out of the wheel bearing using the :T10520 .

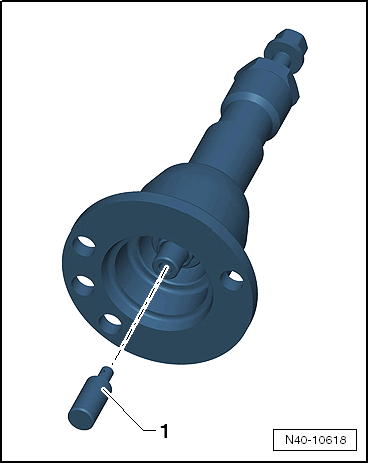

Before using the :T10520 , make sure that the thrust piece -1- is installed.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Using the :T10520 :

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

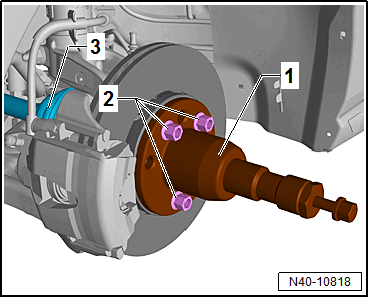

-- Secure the :T10520 -1- with three wheel bolts -2- on the wheel hub, so that the drive axle -3- can be pressed out.

-- Follow the specified sequence exactly.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

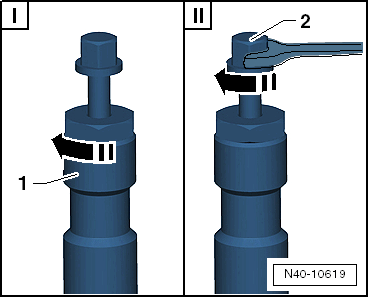

I -Tighten the knurled nut -1- hand-tight.

II -Only turn the bolt -2- using a wrench and press out the drive axle using the :T10520 .

NOTE:

At the end of the tasks or to set back, the spindles must be brought back into the original position so that the hydraulic operation can be used.

-- Remove the control arm from the ball joint.

-- Move the control arm downward as much as needed.

-- Loosen the nut on the ball joint -2- but do not remove it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

To protect the thread, screw the nut on the pin a few turns.

-- Remove the ball joint from the wheel bearing housing. Then remove the nut and the ball joint -2-.
