Seat Position Sensor, Removing And Installing: Removing

WARNING:

Observe the safety precautions for pyrotechnical components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "Discharge Static Electricity". For example, this can be done by briefly touching the door striker.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Attach the front seat to the Fixture For Seat Repair. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

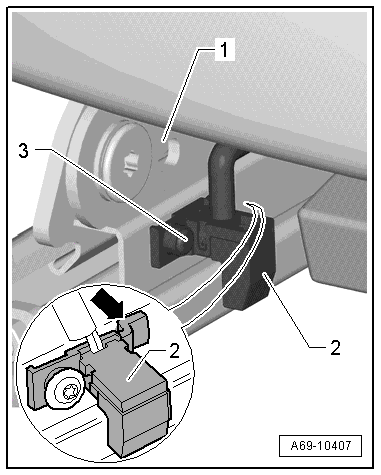

-- Remove the bolt -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -arrow- of the seat position sensor -2- from the seat pan lower frame -1-.

NOTE:

It may be helpful to make drawings or take photos of the wire routing. This assures the wires will be reconnected correctly.

-- Disconnect the wire from the seat position sensor and free it up.

-- Remove the seat position sensor with the wires from the seat pan lower frame.
