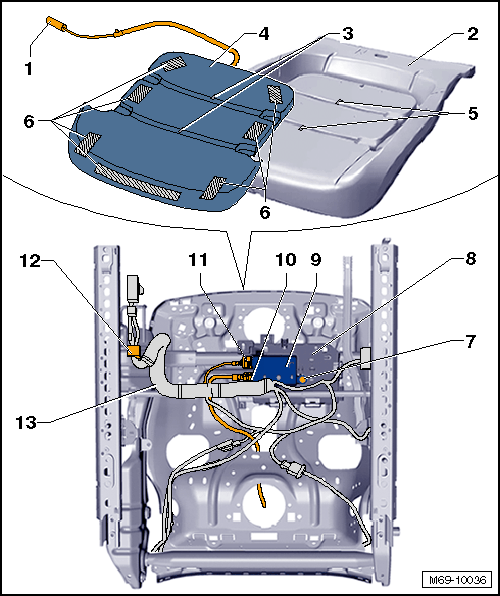

Overview - Passenger Occupant Detection System
NOTE:
The passenger occupant detection system pressure sensor automatically deactivates the front passenger airbag when the front passenger seat is not occupied.
The passenger occupant detection system pressure sensor and the Front Passenger Seat Heating Element -Z8- are a shared component.
This equipment is only installed on vehicles released in the USA.
The components pictured can vary in form and appearance from the present vehicle. However the assembly and functionality are identical.
- Wiring Harness
- Pay attention to the exact wire routing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR, REMOVING AND INSTALLING .
- Front Seat Cushion
- Must not be disconnected from the passenger occupant detection system pressure sensor
- The components are separated from each other; replace both components
- It is not necessary to replace the Passenger Occupant Detection System Control Module - J706-.
- Positioning Aids
- Positioning aids on the passenger occupant detection system pressure sensor
- Passenger Occupant Detection System Pressure Sensor
- Must not be separated from the front seat cushion cover
- The components are separated from each other; replace both components
- On vehicles with seat heating, the passenger occupant detection system pressure sensor and the Front Passenger Seat Heating Element -Z8- are a shared component.
- It is not necessary to replace the Passenger Occupant Detection System Control Module -J706-.
- Removing and installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR, REMOVING AND INSTALLING .
- Positioning Aids
- Positioning aids on the front seat cushion padding
- Adhesive Surfaces
- Adhesion surface for gluing to the front seat cushion cover
- Bolt
- 1.5 Nm
- Screw for Passenger Occupant Detection System Control Module - J706-
- Bracket
- Passenger Occupant Detection System Control Module - J706- bracket
- Clipped to the seat frame
- Removing and installing. Refer to Passenger Occupant Detection System Control Module -J706- BRACKET, REMOVING AND INSTALLING .
- Passenger Occupant Detection System Control Module - J706-
- If the Passenger Occupant Detection System Control Module - J706- must be replaced, it is not necessary to replace the passenger occupant detection system pressure sensor.
- Removing and installing. Refer to Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING .
- Connector
- Pay attention to the exact wire routing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR, REMOVING AND INSTALLING .
- Connector
- Voltage supply connector for Passenger Occupant Detection System Control Module - J706-
- Connector
- Coupling location of the passenger occupant detection system to the vehicle electrical system
- Front Seat Wiring Harness
