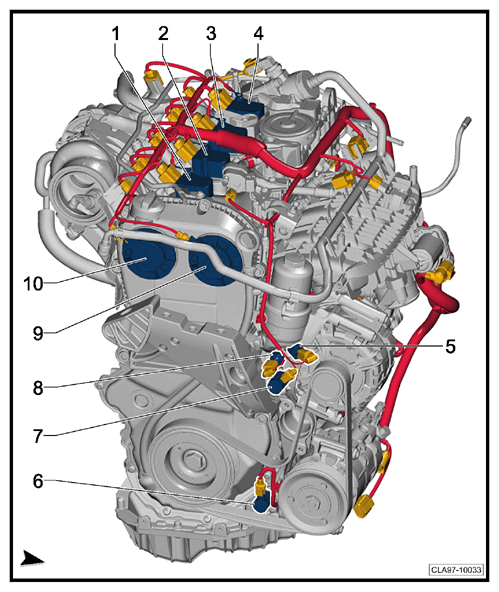

2.0L TFSI, Right View
- 1 - Ignition coil 1 with power output stage -N70-
- 2 - Ignition coil 2 with power output stage -N127-
- 3 - Ignition coil 3 with power output stage -N291-
- 4 - Ignition coil 4 with power output stage -N292-
- 5 - Reduced oil pressure switch -F378-
- 6 - Oil pressure regulation valve -N428-
- 7 - Piston cooling nozzle control valve -N522-
- 8 - Oil pressure switch -F1-
- 9 - Camshaft adjustment valve 1 -N205-
- 10 - Exhaust camshaft adjustment valve 1-N318-
