Fresh Air Blower Control Module -J126-, Removing And Installing: Removing

-- Remove the partition. Refer to COMPONENT LOCATION OVERVIEW - STORAGE COMPARTMENT AND COVERS .

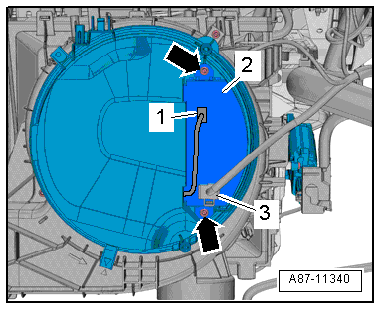

-- Disconnect the connectors -1 and 3-.

GWWA87-11340Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

CAUTION:

There is a risk of burns from the hot radiating surfaces on the control module.

It Is Possible To Burn Hands.

- Wear safety gloves.

-- Remove the control module -2- from the Fresh Air Blower -V2-.
