Condensation Water Drain, Checking: Notes

Checking

-- Remove the right footwell center console trim panel. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

-- Carefully fold back the carpet near the condensation water drain hose far enough so that the condensation water drain hose is visible.

-- The tab -arrow- on the connection must engage into the guide -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• It must be possible to connect the condensation water drain hose -6- to the connection on the heater and A/C unit -1- without having any tension on it.
• The condensation water drain hose must fit securely to the condensation water drain connection on the tunnel.
• The sealing lip -2- must not sit loosely on the opening in the body.

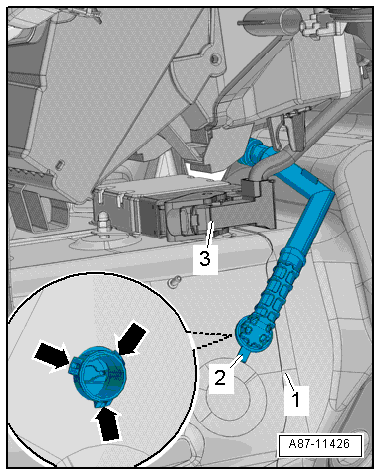

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• The tabs -arrows- must be completely engaged.
