Quick Reference Guide For Flushing Cooling System
WARNING: This page is about a different car, the 2015 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools And Workshop Equipment Required
- Coolant Flushing and Filling Device:VAS531007
NOTE:
Only the essential procedural steps are listed in the quick reference guide. It can be printed out and checked off during the procedure. A detailed description of the procedure can be found here COOLING SYSTEM, FLUSHING .
| Step | Action | Flushing Quantity |
|---|---|---|
| 1. | Drain the coolant | --- |
| 2. | Fill the cooling system with distilled water | --- |
| 3. | Connect the coolant expansion tank bleeder hose to the :VAS531007 | --- |
| 4. | Clamp off the hoses for charge air cooler -1-, bleeder hose for radiator -2- and heater core -4- and flush the cooling system | 3 liters (3.17 quarts) of distilled water |
| 5. | Clamp off the hoses for charge air cooler -1-, the bleeder hose for radiator -2- and cylinder head -3- and flush the cooling system | 2 liters (2.11 quarts) of distilled water |
| 6. | Clamp off the hoses for charge air cooler -1-, bleeder hose for cylinder head -3- and heater core -4- and flush the cooling system | 2 liters (2.11 quarts) of distilled water |
| 7. | Clamp off the bleeder hose for radiator -2-, cylinder head -3- and heater core -4- and flush the cooling system | 2 liters (2.11 quarts) of distilled water |
| Repeat steps 4, 5, 6 and 7, but only pump through 1 liter (1.05 quarts) of distilled water each time | 1 liter (1.05 quarts) of distilled water each | |
| 8. | Clamp off the hoses for charge air cooler -1-, bleeder hose for radiator -2- and heater core -4- and flush the cooling system | 3 liters (3.17 quarts) of coolant |
| 9. | Clamp off the hoses for charge air cooler -1-, the bleeder hose for radiator -2- and cylinder head -3- and flush the cooling system | 2 liters (2.11 quarts) of coolant |
| 10. | Clamp off the hoses for charge air cooler -1-, bleeder hose for cylinder head -3- and heater core -4- and flush the cooling system | 2 liters (2.11 quarts) of coolant |
| 11. | Clamp off the bleeder hose for radiator -2-, cylinder head -3- and heater core -4- and flush the cooling system | 2 liters (2.11 quarts) of coolant |
| Repeat steps 8, 9, 10 and 11, but only pump through 1 liter (1.05 quarts) of coolant each time | 1 liter (1.05 quarts) of coolant each | |
| 12. | Remove all clamping pliers | --- |
| 13. | Remove the :VAS531007 and seal off the coolant expansion tank | --- |
| 14. | Bleed the cooling system using the | --- |
| 15. | Check the freeze protection and coolant level | --- |

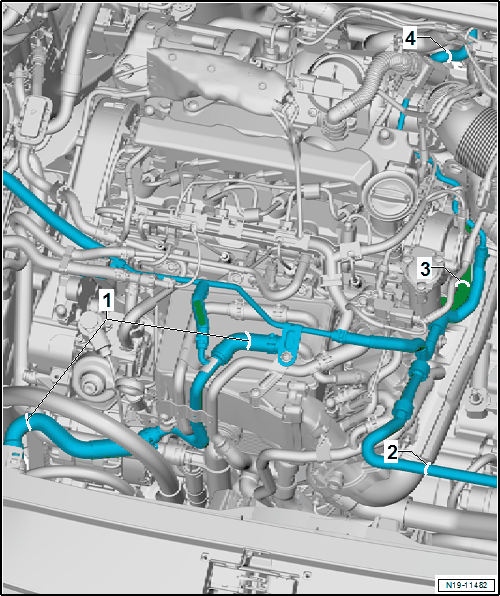

Clamping Locations
- Hoses for Charge Air Cooler
- Radiator Bleeder Hose
- Cylinder Head Bleeder Hose
- Heater Core for the Heater Bleeder Hose
