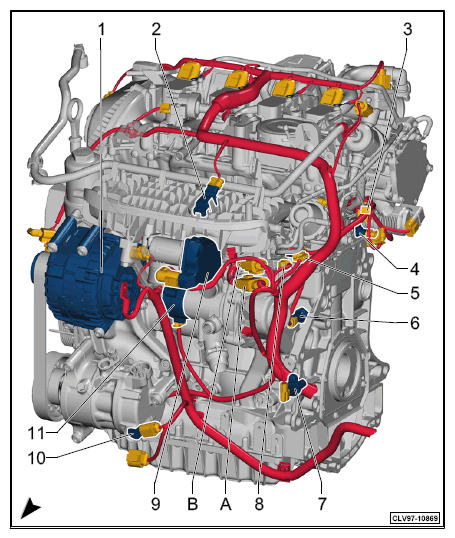

1.8L TFSI, Front View
- 1 - Generator with voltage regulator -CX1-
- Voltage regulator -C1-
- Generator -C-
- 2 - Intake manifold sensor -GX9-
- Intake air temperature sensor -G42-
- Manifold absolute pressure sensor -G71-
- 3 - Coolant shut-off valve -N82-
- 4 - Engine coolant temperature sensor -G62-
- 5 - Intake manifold runner control valve -N316-
- 6 - Oil pressure switch, level 3 -F447-
- 7 - Engine speed sensor -G28-
- 8 - Knock sensor 1 -G61-
- 9 - Throttle valve control module -J338-
- EPC throttle drive -G186-
- EPC throttle drive angle sensor 1 -G187-
- EPC throttle drive angle sensor 2 -G188-
- 10 - A/C compressor regulator valve -N280-
- 11 - Engine temperature control actuator -N493-
- A - 14-pin connector -T14e-
- A - 14-pin connector -T14f-
- B - 8-pin connector -T8f-
- B - 8-pin connector -T8g-
