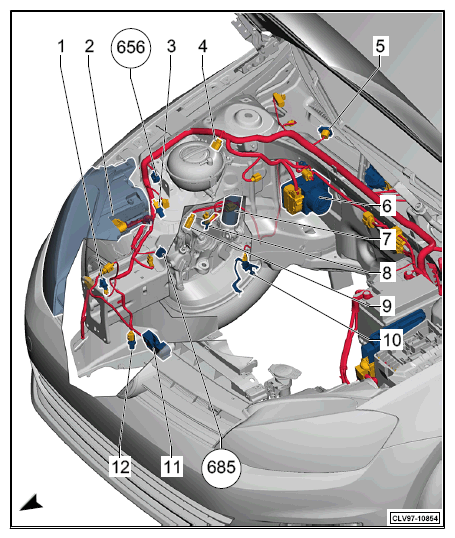

Engine compartment, RF side
- 1 - Passenger side front airbag crash sensor -G284-
- 2 - Right front headlamp -MX2-
- Right headlamp power output stage -J668-
- Right daytime running lamp and position lamp control module -J861-
- Right daytime running lamp and position lamp LED module -L177-
- 3 - Refrigerant circuit pressure sensor -G805-
- 4 - Engine coolant level sensor -G32-
- 5 - Air quality sensor -G238-
- 6 - ABS control module -J104-
- 7 - Right front body acceleration sensor -G342-
- 7 - Right front damping adjustment valve -N337-
- 8 - Right front ABS wheel speed sensor -G45-
- 9 - Right front brake pad wear sensor -G35-
- 10 - Right front level control sensor -G289-
- 11 - Hood contact switch -F387-
- 12 - Engine coolant temperature sensor on radiator outlet -G83-
- 656 - Ground connection on right headlamp
- 685 - Ground connection 1 on right front longitudinal member
