Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

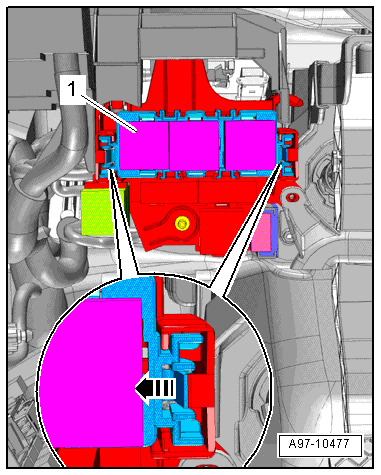

Fig 1: Identifying 3 Pin Relay/Fuse Panel Components

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the driver side instrument panel cover, refer to Storage Compartments and Covers .

-- Disengage the 3-pin relay/fuse carrier by pressing the retaining springs in the direction of the -arrow- and remove the relay/fuse carrier -1-.

-- Remove the wire -1-.

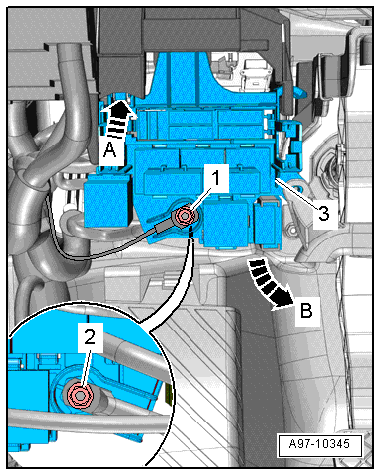

Fig 2: Removing Relay/Fuse Panel

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining spring -arrow A- and tilt the 4-pin relay/fuse carrier -3- out of the mount -arrow B-.

NOTE:

Disregard item -2-.

-- Release the spring -arrow- and remove the Vehicle Electrical System Control Module -J519- -1- downward from the mount.

Fig 3: Removing Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

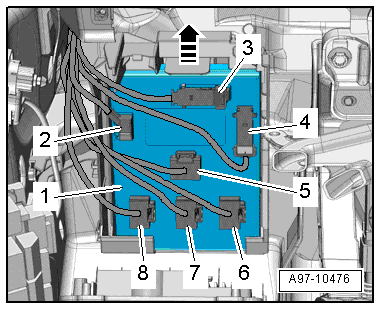

-- Disconnect the connectors -2, 5, 6, 7 and 8-.

-- Disconnec the connecots -3- and -4-.

-- To disconnect the connector, press the catch -1-, rotate the retaining bracket in the direction of the -arrow- and remove the connector.

Fig 4: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC
