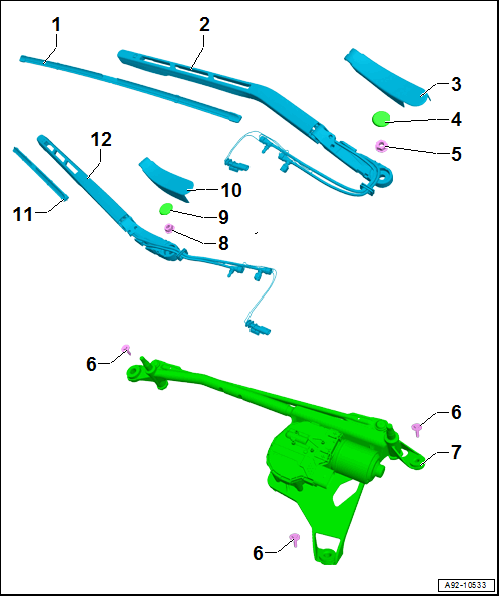

Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Cap
- Nut
- 32 Nm
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Nut
- 32 Nm
- Cap
- Windshield Wiper Arm Cover
- Windshield wipers with integrated washer nozzles only
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Front Passenger Side Windshield Wiper Arm
- There are different lengths and versions. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .

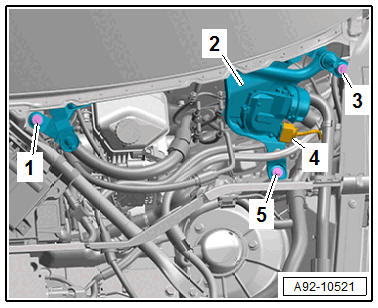

Windshield Wiper Motor - Tightening Specification and Sequence
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1, 3, 5- | Install by hand all the way |
| 2. | -1, 3, 5- | 8 Nm |
