Tightening Specification

There are different brackets and transmission supports due to the different engine versions and different neck lengths on the transfer case. For the allocation. Refer to the Parts Information.

There are also different attachment points for attaching the bracket to the transfer case and to the transmission support:

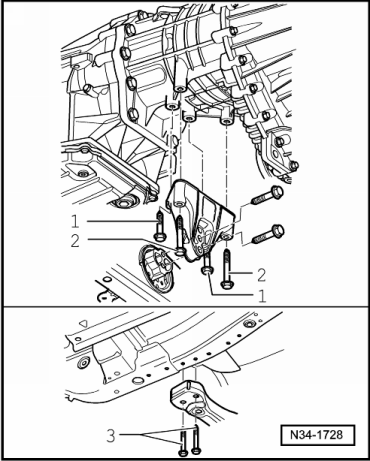

Fig 1: Identifying Transfer Case Bracket Mounting

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket to transmission support

Always replace the bolts.

50 Nm + 90°

Bracket to transfer case
Bolts -1- M8 x 35	20 Nm
Bolts -2- M8 x 70	20 Nm

Transmission support to body Always replace the bolts.
Bolts -3- M10 x 80	50 Nm + 90°

-- Install the impact guard under the transmission support and bracket, if equipped. Refer to Body Front .
