Transfer Case, Transporting

Special tools and workshop equipment required

• Engine/Gearbox Support Shackle (2 pc.): 10-222A/12
• Shop Crane: VAS6100

-- Attach the Engine/Gearbox Support Shackle (2 pc.): 10-222A/12  to the lifting eye on the transfer case, as illustrated.

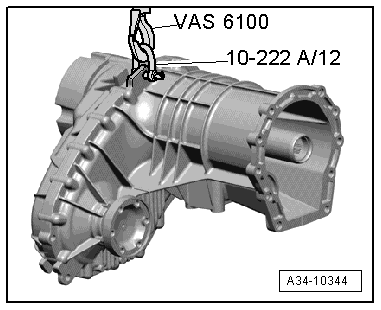

Fig 1: Identifying Shackle 10-222 A/12 Installed On Shop Crane VAS 6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Engage the Engine/Gearbox Support Shackle (2 pc.): 10-222A/12  on the Shop Crane: VAS6100  .
