Transfer Case, Checking Transmission Fluid Level

For the transmission fluid specification. Refer to CODE LETTERS, TRANSMISSION ALLOCATION AND CAPACITIES .

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit: SMN372500

-- Remove the oil check plug -1-.

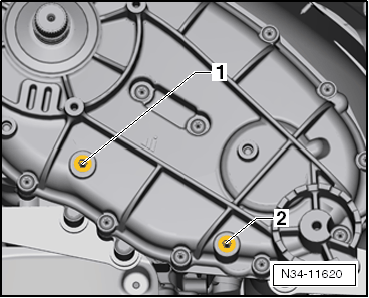

Fig 1: Identifying Transfer Case Inspection/Drain Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The level is correct when the transfer case is filled up to the bottom edge of oil filler hole -1-.
