Transmission, Transporting

Special tools and workshop equipment required

Procedure

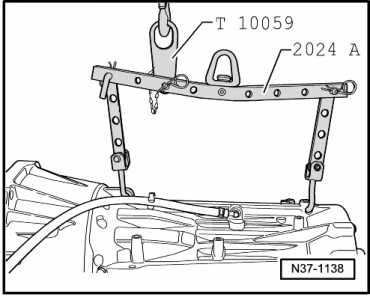

Fig 1: Fastening Engine Sling 2024 A With Shackle T10059 To Shop Crane VAS 6100

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the Engine Sling: 2024A to the transmission using an Engine Shackle: T10059 as shown.

WARNING:

Mounting hooks and connecting pins on engine sling must be secured with plug connectors.

-- Attach the Engine Shackle: T10059 to the Shop Crane: VAS6100 .
