Transmission, Removing And Installing, Hybrid Vehicles: Notes
Brief Description
The transmission is removed individually in a downward direction in these vehicles. The engine and electric drive motor remain in the vehicle.
Special tools and workshop equipment required
- Bracket - Multiple Use: 30 - 211 A
- Pry Lever: 80 - 200
- Engine and Gearbox Jack: VAS6931
- Crankshaft Socket: T40058
- Depth Gauge: VAS6082
- Engine Bung Set: VAS6122
- Step Ladder: VAS5085
- Gearbox Support: T40173 with Scissor Lift Table - Gearbox Support Pads: VAS6131/14-1
- Not illustrated: Transmission Support: T40173/1
Before using the : T40173 , always make sure it matches the current version.
The older version mounts should not be used and should be replaced with the newest version.
Characteristics (newer version):

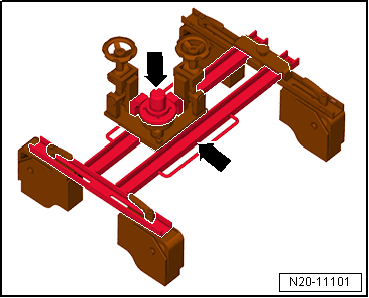

On the newer version the components colored -red- in the image -arrows- are yellow chrome plated.
If the mount does not comply with corresponding specifications, proceed as follows:
- German market: contact the Matra company for an exchange.
- Other markets (worldwide outside of Germany): contact the importer for an exchange.
Retrofit the : T40173 as follows:

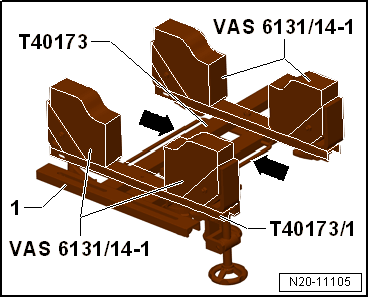

-- Expand the : T40173 using the : T40173/1 . To do so, install the : T40173/1 between the fixed support -1- and the brackets -arrows-.
