Transmission, Removing And Installing, Hybrid Vehicles: Installing

Install in reverse order of removal while noting the following:

Clean the ATF cooler and the ATF lines if the ATF is dirty or before installing a replacement transmission. Refer to ATF PIPES AND ATF COOLER, CLEANING .

Use a wire brush to clean the threads of the bolts that were installed with locking fluid. Then insert the bolts with Locking Fluid: AMV 185 101 A1 .

Use a thread cutter to clean all threaded holes containing self-locking bolts to remove any locking compound residue. Otherwise the bolts could shear the next time they are removed.

-- Always replace self-locking bolts and nuts.

-- Reconnect all electrical connections, lines, hoses, and connectors that were disconnected during removal.

-- Make sure the torque converter is inserted correctly inside the transmission before installing the transmission. Refer to TORQUE CONVERTER, INSTALLING .

-- Check installation dimension -a- Fig 1

Fig 1: Measuring Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 2: Measuring Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Prior to installation of the transmission in the drive motor, ensure that there are alignment sleeves for centering the drive motor/transmission -arrows- or install them if necessary.

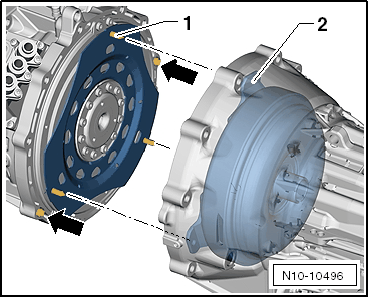

Fig 3: Alignment Sleeves -Arrows

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When connecting the drive motor and transmission, ensure that the stud bolts of the drive plate are flush with the converter bushings.

CAUTION:

The transmission and torque converter will be damaged if the engine and transmission are bolted together with force when the torque converter is installed incorrectly.

-- When bolting the transmission to the drive motor, always make sure the converter is >>rotating freely<< and not jammed.

Overview - Transmission to Drive Motor Connecting Bolts

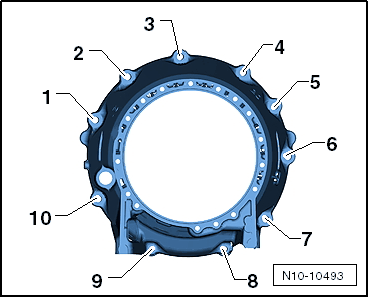

Fig 4: Transmission to Drive Motor Connecting Bolts Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification: 30 Nm + 90° additional turn. Replace the bolts.

-- Tighten the three new nuts for the torque converter -arrow- through the opening in the transmission. Turn the input shaft 120° for this purpose.

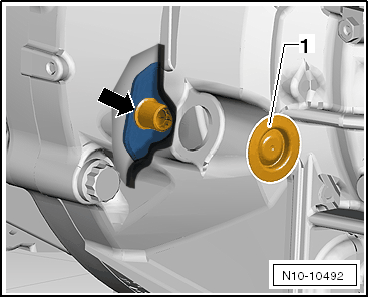

Fig 5: Cap And Torque Converter Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification: 60 Nm

-- Install cap -1-.

-- Bolt the ATF preheater -arrows- to the transmission.

Fig 6: Identifying Pre-Heater Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the plug and insert the ATF lines all the way into the transmission.

-- Install the bolts -1 and 2-. Refer to ATF PIPES, REMOVING AND INSTALLING .

Fig 7: Identifying Transmission Fluid Pipe Bolts -1 & 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully install the selector lever cable ball head -1- on the lever/selector shaft. Do not bend the lever/selector shaft when doing this or else shifting can no longer be adjusted precisely.

Fig 8: Identifying Selector Lever Cable, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace clip -3-.

-- Check the selector lever cable and adjust it if necessary. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .

-- Further installation is performed in reverse order of removal.

Fig 9: Attention

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

After installing, check the ATF level and add more ATF if necessary. Refer to ATF LEVEL, CHECKING AND FILLING .

Tightening Specification
ATF preheater to transmission	20 Nm
