Selector Lever Handle, Removing And Installing: Notes

Special tools and workshop equipment required

• Hose Clip Pliers: VAG1275A

Overview

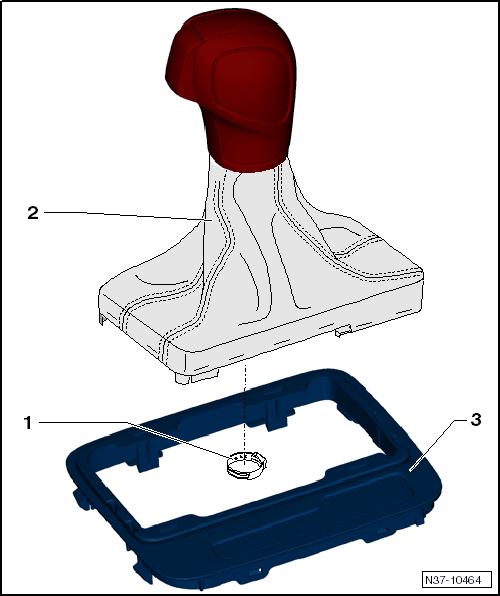

Fig 1: Exploded View Of Selector Lever Knob & Boot

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Ear Clamp
   • For fastening the handle on the selector lever
   • Will be damaged during removal, always replace.
2. Handle with Boot
   • Removed together with the shift cover.
3. Shift Cover
   • Removed together with the handle
