Overview - Selector Mechanism, Vehicles From 06/2012

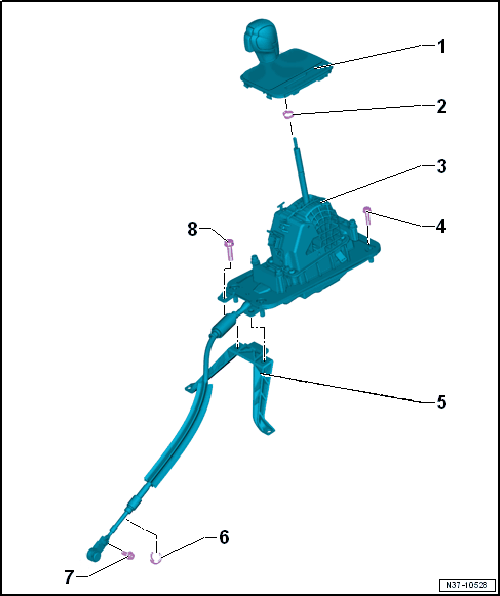

Fig 1: Exploded View Of Selector Mechanism, Vehicles From 06/2012

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Handle with Shift Cover
   • Selector lever handle, removing and installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
2. Ear Clamp
   • For fastening the handle on the selector lever
   • Will be damaged during removal, always replace.
3. Selector Mechanism with Gearshift Housing and Selector Lever Cable
   • With installed Selector Lever Park Position Lock Switch -F319-, with Selector Lever Sensor System Control Module -J587- with Tiptronic Switch -F189- and Shift Lock Solenoid -N110-
   • The selector mechanism and the selector lever cable cannot be separated from each other. Both are removed at the same time.
   • Do not bend or kink the cable.
   • Removing and installing. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
   • Checking and adjusting the cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
4. Bolt
   • 10 Nm
   • Quantity: 4
5. Centering Bracket
   • Not reinstalled after assembly
6. Lock Washer
   • Always replace after removing
7. Bolt
   • 12 Nm
8. Bolt
   • Quantity: 2
   • Not reinstalled after assembly
