Auxiliary Hydraulic Pump Control Module -J922-, REMOVING AND INSTALLING: Notes

Short Description:

The Auxiliary Hydraulic Pump Control Module -J922- may be installed in different locations, depending on which auxiliary hydraulic pump it controls.

The Auxiliary Hydraulic Pump Control Module -J922- -2- and the Transmission Control Module -J217- -1- are located under the right front seat if the vehicle has a "Start/Stop System".

Fig 1: Identifying Transmission Control Module -1- And Housing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The following describes removing and installing the control module. Refer to Auxiliary Hydraulic Pump Control Module -J922-, REMOVING AND INSTALLING, "Start/Stop System" .

The Auxiliary Hydraulic Pump Control Module -J922- is located in the right wheel housing behind the wheel housing liner for vehicles with a "Hybrid Engine".

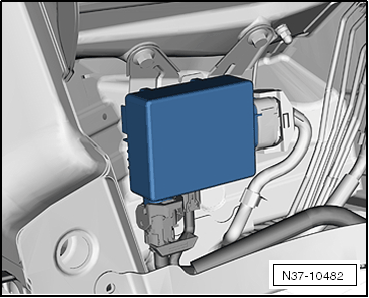

Fig 2: Auxiliary Hydraulic Pump Control Module -J922-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing and installing the control module is described in: TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP -- .

Additional information regarding the control modules:

• Refer to Self Study Program 8-Speed Automatic Transmission 0C8
