Transmission Identification

8-speed automatic transmission 0C8 is installed in the Touareg. Allocation. Refer to CODE LETTERS AND ALLOCATION .

Transmission code letters are located on the type plate on the left side of the transmission at the bottom.

Example

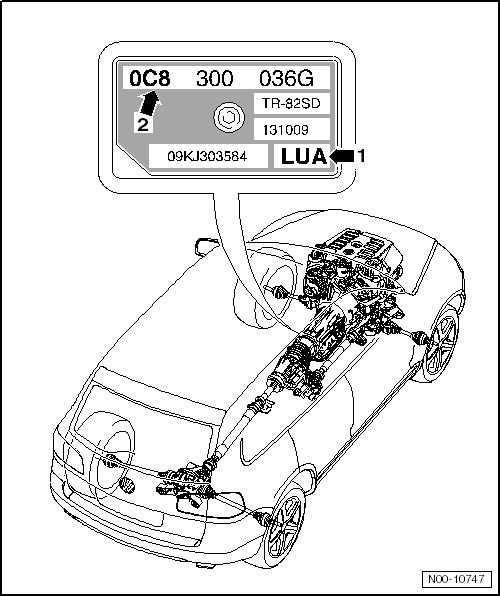

Fig 1: Transmission Identification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Code Letters
2. Automatic Transmission 0C8

   The transmission code is also listed on the vehicle data plate.
