Engine Control Module -J623-: 94-pin/60-pin

94-pin connector -T94-/60-pin connector -T60-

  1. Engine control module -J623-
  2. 94-pin connector -T94-
  3. 60-pin connector -T60-

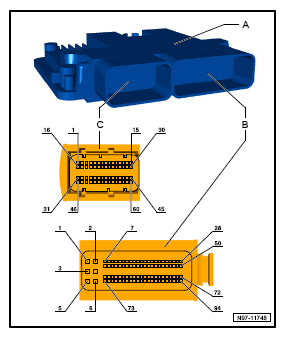

Fig 1: Engine Control Module Connector End View (J623) - 94-Pin Connector (T94)/60-Pin Connector (T60)
G12755013Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
