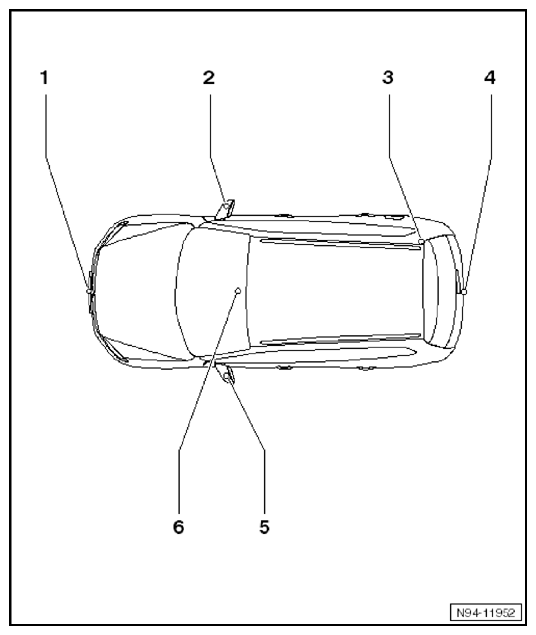

19.2 Overview - Peripheral View Camera System
- Front Peripheral Camera - R243-
- Installed location: inside the bumper cover in the front
- Removing and installing. Refer to 19.4 Front Peripheral Camera - R243-
- Right Peripheral Camera - R245-
- Component location: in the right exterior mirror housing
- Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- or Left Peripheral Camera - R244-
- Peripheral Camera Control Module - J928-
- Installed location: in the luggage compartment behind the right trim panel
- Removing and installing. Refer to 19.6 Peripheral Camera Control Module - J928-
- Rear Peripheral Camera - R246-
- Installed location: inside the rear lid handle button
- Removing and installing. Refer to 19.5 Rear Peripheral Camera - R246-
- Left Peripheral Camera - R244-
- Component location: in the left exterior mirror housing
- Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- Or Left Peripheral Camera - R244-
- Peripheral Camera Button
- Component location: inside the switches in the center console, above the radio/navigation system
- Removing and installing. Refer to 19.7 Peripheral Camera Button
