Engine Control Module 2 -J624-, If Equipped

91-pin connector -T91-/105-pin connector -T105-

  1. Engine control module 2 -J624-, if equipped
  2. 91-pin connector -T91-
  3. 105-pin connector -T105-

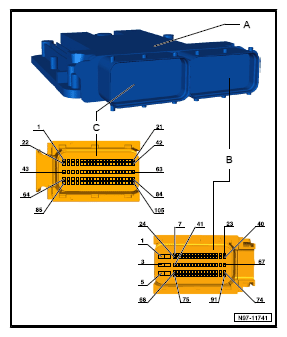

Fig 1: Engine Control Module 2 Connector End View (J624)
G12755014Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
