High Pressure Pump, Removing And Installing: Notes

Special tools and workshop equipment required

• Counterhold - Camshaft Gear T10051
  Fig 1: Identifying Counterhold - Camshaft Gear

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

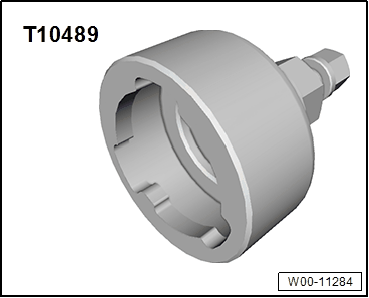

• Puller T10489
  Fig 2: Identifying Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Locking Pin T10492
  Fig 3: Identifying Locking Pin

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
