Engine Number/Engine Characteristics

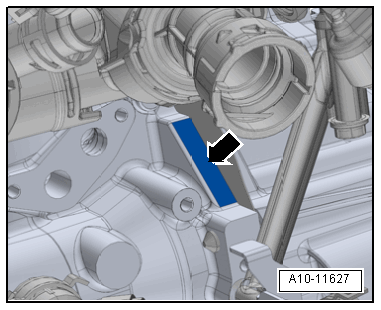

- The engine number ("engine codes" and "serial number") are located on the front of the engine/transmission joint -arrow-.
- In addition, a sticker with "engine codes" and "serial number" is affixed to the upper toothed belt guard.
- Engine codes beginning with "C" are four-digit.
- The first three digits of the engine code stand for displacement and the mechanical structure of the engine. They are stamped in the cylinder block, including the serial number.
- The 4th digit describes the engine output and torque and depends on the engine control module.
NOTE:
The four digit engine code is on the type plate, vehicle data label and Engine Control Module (ECM).
Type label component location (market-specific) and the vehicle data label, refer to => .
| Codes | CVCA | |
|---|---|---|
| Emission values in accordance with | - | BIN 5 |
| Displacement | liter | 1.968 |
| Output | kW at RPM | 110/3500 |
| Torque | Nm at RPM | 320/1750 to 3000 |
| Bore | diameter in mm | 81.0 |
| Stroke | mm | 95.5 |
| Compression ratio | - | 16.2 |
| Fuel | - | Diesel |
| Ignition sequence | - | 1-3-4-2 |
| Exhaust Gas Recirculation (EGR) | yes | |
| Exhaust Temperature Regulation | yes | |
| Balance shafts | yes | |
| Turbocharger | Turbocharger | |
| Charge air cooler | yes | |
| Oxygen sensor regulation | 1 Heated Oxygen Sensor | |
| Particulate filter with catalytic converter | yes | |
| Selective Catalytic Reduction (SCR) Catalytic Converter | yes | |
| Valve per cylinder | 4 | |
