Overview - Glow Plug System

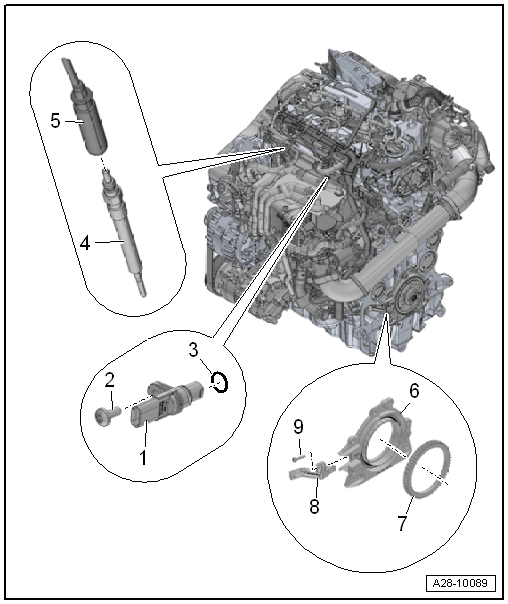

Fig 1: Identifying Glow Plug System Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Camshaft Position Sensor -G40-
- Removing and installing, refer to Camshaft Position Sensor -G40- .
Bolt
- 9 Nm
O-Ring
- No replacement part, replace the camshaft position sensor if damaged
Glow Plug
- Glow Plug 1 -Q10-
- Glow Plug 2 -Q11-
- Glow Plug 3 -Q12-
- Glow Plug 4 -Q13-
- If equipped Glow Plug 3 -Q12- with the Cylinder 3 Combustion Chamber Pressure Sensor -G679-
- Glow plug versions, refer to Figure.
- Glow plug without combustion chamber pressure sensor 17 Nm
- Glow plug with combustion chamber pressure sensor 12 Nm
- Removing and installing, refer to GLOW PLUG .
Connector
- For the glow plug
Sealing Flange, Transmission Side
- Removing and installing, refer to SEALING FLANGE, TRANSMISSION SIDE .
Sensor Wheel
- For Engine Speed Sensor -G28-
- Removing and installing, refer to OVERVIEW - CYLINDER BLOCK, TRANSMISSION SIDE .
Engine Speed Sensor -G28-
- Removing and installing, refer to Engine Speed Sensor -G28- .
Bolt
- 4.5 Nm
