FONT PASSENGER AIRBAG, CHECKING KEY SWITCH AND "ON/OFF Function"

NOT FOR NORTH AMERICAN MARKET

NOTE:

The "Airbag ON/OFF" switch is located inside the glove compartment.

Font Passenger Airbag, Checking Key Switch and "ON/OFF Function"

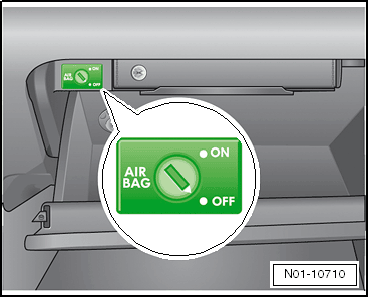

-- Using the key, turn the switch to "AIRBAG OFF".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch on the ignition.

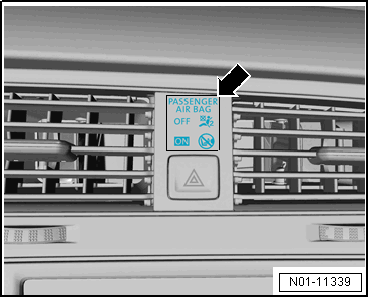

-- The "PASSENGER AIRBAG OFF" display -arrow- must also light up after the self-test (the front passenger airbag is not active).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition.

-- Using the key, turn the switch to "AIRBAG ON".

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch on the ignition.

-- The control indicator "PASSENGER AIRBAG OFF" -arrow- must go out after the self-test (front passenger airbag activated).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition.
