General Information

NOTE:

Only applies to vehicles with highline instrument cluster.

The compass indicates the direction vehicle is facing.

For a correct reading, the correct compass zone must be adjusted.

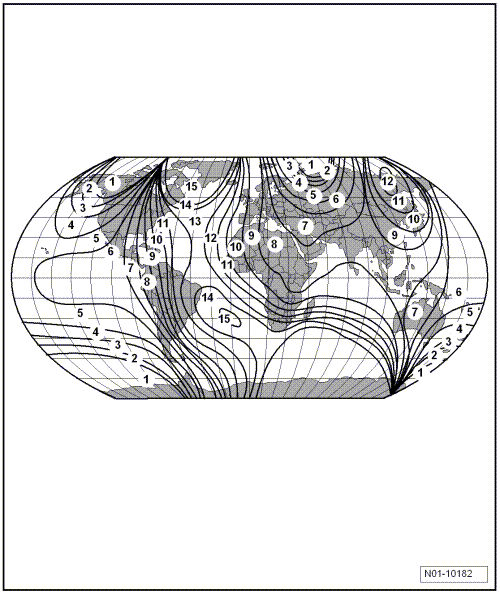

-- Determine the geographic area, referring to the zone map, for example zone 8 for Germany, zone 6 for Mexico, etc.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Setting the compass zone and calibrating the compass is performed in the "main menu", using the button -1- and the rocker switch -2- of the windshield wiper stalk.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Button -1- confirms the menu items.
Use the rocker switch -2- to switch from one menu to another.
