Windshield Wiper Protectors, Removing, Version 2

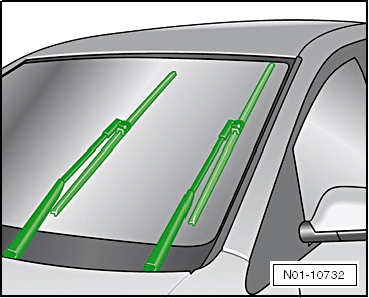

-- With the engine hood closed, switch the ignition on and off briefly.

GWWN01-10732Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Within 10 seconds after switching off the ignition, move the windshield wiper lever downward to the mist wipe position.

The wipers move into the service position.

-- Lift the wiper arm off the glass.

CAUTION:

Do not hold the wiper blade to prevent damage.

-- Remove the protective rail off the wiper blade as illustrated.

GWWN01-10619Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully place the wiper arm back on the windshield.

-- Move the windshield wipers back into the resting position: turn on the ignition and operate the windshield wiper lever briefly. Turn off the ignition.
