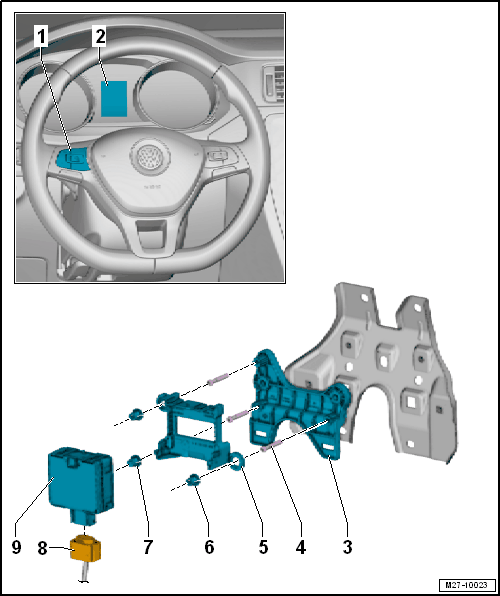

Overview - Adaptive Cruise Control
- Adaptive Cruise Control Button -E357-
- Is integrated in the multifunction steering wheel.
- Removing and installing. Refer to MULTIFUNCTION STEERING WHEEL .
- Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
- Carrier Plate
- Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, WITH RETAINING PLATE .
- Adjusting Screws
- Quantity: 3
- Adapter Frame
- Serves as the mount for the Distance Regulation Control Module -J428-
- With Distance Regulation Control Module -J428- adjusting screw
- Measure the adjustment dimension and adjust if necessary. Refer to Installing .
- Clip
- With adjustable opening
- Closed Clip
- Connector
- Distance Regulation Control Module -J428-
- Removing and installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING AT ADAPTER FRAME .
- Calibrating. Refer to ADAPTIVE CRUISE CONTROL, CALIBRATING .
