Transmission, Installing: Notes
-- Install the transmission together with the engine. Refer to ENGINE, REMOVING AND INSTALLING [For engine(s) CZTA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CBPA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CNLA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CVCA or ENGINE, REMOVING AND INSTALLING [For engine(s) CPPA, CPRA, CPKA, CPLA] .
Attach the Transmission to the Engine As Follows:
- The Electro-Drive Drive Motor -V141- is attached to the engine.
- The Transmission Support :3282 is installed in the Scissor Lift Table - W12 Engine Support : VAS6131/2 on the Scissor Lift Table :VAS6131 .
- Follow repair instructions. Refer to REPAIR INFORMATION .
- Refer to TRANSMISSION TIGHTENING SPECIFICATIONS
Refer to "Transmission, Removing" to get a list of the special tools needed TRANSMISSION, REMOVING .

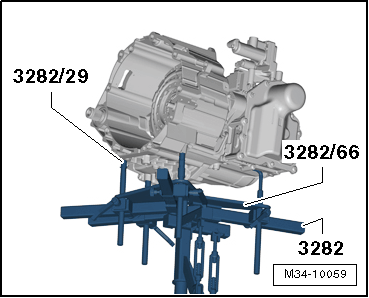

-- Mount the transmission on the Transmission Support :3282 and secure it.
-- Check if the alignment sleeves for centering the engine/transmission are in the cylinder block and insert them if they are not.

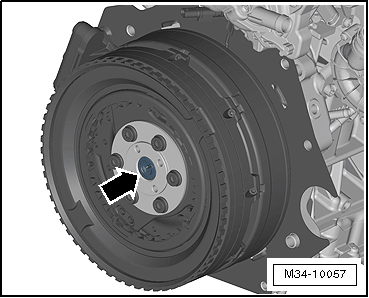

-- Check the needle bearing -arrow- in the Electro-Drive Drive Motor -V141-. Replace it if necessary. .
The gears will no longer shift correctly if the needle bearing inside the Electro-Drive Drive Motor -V141- is damaged.

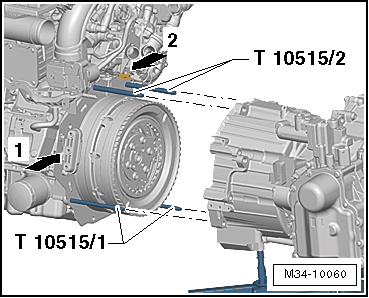

-- Install the Centering Mandrel :T10515 into the engine, as illustrated.
-- Align the transmission with the engine and then carefully push the transmission onto the engine. While doing this, turn the spindle on the Transmission Support :3282 to adjust the position of the transmission.
- Be careful not to damage the connections -arrow 1- on the Electro-Drive Drive Motor -V141- and on the Drive Motor Temperature Sensor -G712- -arrow 2-.
- Guide the engine and transmission together by hand until the entire surface of both flanges come into contact with one another.
Turn the crankshaft slightly if necessary.
-- Attach the transmission to the engine and remove the Centering Mandrel :T10515 from the engine.
-- If the transmission was replaced: attach the cable bracket, the transmission bracket and the bracket to the transmission. Refer to TRANSMISSION, REMOVING .
-- Connect the connector -1- to the valve -2- on the Mechatronic and attach the wiring harness to the front bracket on the transmission.
Check the O-ring -arrow- on the hydraulic line for damage and replace, if necessary. Refer to the Parts information.
The O-ring must appear green. It can be used with hydraulic fluid. Do not use any other O-ring.
Remove and dispose of the sealing plugs on the hydraulic line as well as on the engine and valve block/Mechatronic just before installation. The sealing plugs cannot be used again.
-- Install the hydraulic line -3- on the engine and valve block/Mechatronic.
-- Push the clamps -2- onto the valve block/Mechatronic.
-- Pull on the hydraulic pipe -3- to check it.
-- Tighten the bolt -1- on the engine for the hydraulic line to the tightening specification.
If the transmission was sealed so that no fluid can leak out, for example, after repairing or replacing the transmission:

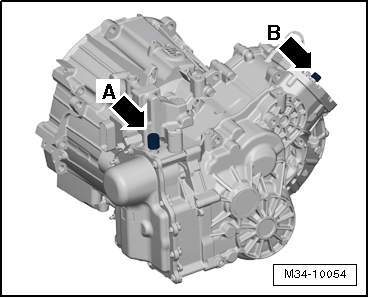

-- Remove the plug from the transmission ventilation and install the ventilation cap -arrow B-.
Fill the transmission fluid via the transmission ventilation if the fluid was drained earlier. Refer to TRANSMISSION FLUID, DRAINING AND FILLING .
-- Remove the plug -arrow A- from the DSG Transmission Mechatronic -J743- ventilation.
- If more than approximately 20 ml of hydraulic fluid has leaked out, for example while removing and installing the DSG Transmission Mechatronic -J743- or while removing and installing the Electro-Drive Drive Motor -V141-, then add 30 ml of hydraulic fluid via the ventilation -1-.

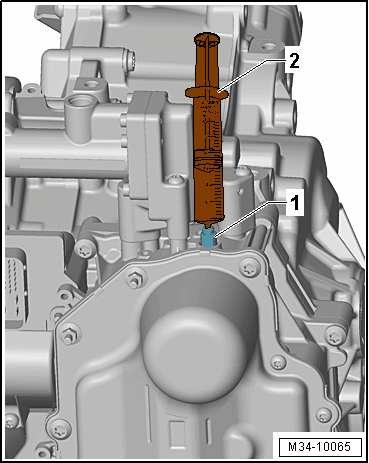

- For the disposable syringe -2- from the Repair Kit :5C0 998 152 and the correct hydraulic fluid. Refer to the Parts information.
- Fill the new disposable syringe with 30 ml hydraulic fluid from the new Power Steering Fluid :G 004 000 M2 container.
Risk of causing damage to the Mechatronic.
- Always use a new container to comply with cleanliness requirements.
- Note the hydraulic fluid expiration date.
- Always use a new disposable syringe from the Repair Kit :5C0 998 152 . The disposable syringe must not be reused.

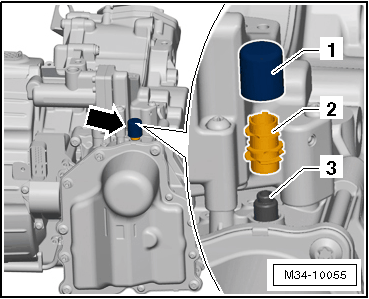

-- Push the new cap -1- on the ventilation -3-. It is replacement part with a vent -2-.
-- Attach Drive Motor Rotor Position Sensor 1 -G713- -C- to the transmission -arrows-. Refer to ELECTRO-DRIVE DRIVE MOTOR .
-- Attach the bracket and Brake System Vacuum Pump -V192- -B- to the transmission. Refer to VACUUM SYSTEM .
-- Attach the Drive Motor High Voltage Wiring Harness -PX2- to the transmission. Refer to HIGH VOLTAGE CABLES .
The Transmission and Engine Will Be Installed Later in Another Procedure. Refer to ENGINE, REMOVING AND INSTALLING [For engine(s) CZTA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CBPA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CNLA] or ENGINE, REMOVING AND INSTALLING [For engine(s) CVCA or ENGINE, REMOVING AND INSTALLING [For engine(s) CPPA, CPRA, CPKA, CPLA] .
- Bleed the hydraulic clutch mechanism for the decoupler using the Vehicle Diagnostic Tester in Guided Functions after energizing the high voltage system.
The decoupler in Electro-Drive Drive Motor -V141- separates the internal combustion engine from the Electro-Drive Drive Motor -V141-.
Before the bleeding procedure, make sure that the battery is charged or is attached to a charging device during the procedure.
After the bleeding procedure, delete the faults in stored in the transmission control module. Refer to Vehicle Diagnostic Tester.
