Schematic Overview - Transmission: Notes

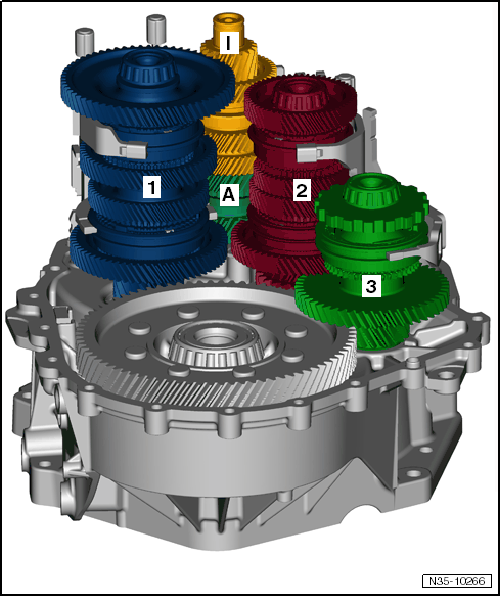

GWWN35-10266Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. A - Exterior Driveshaft
  2. I - Inner Driveshaft
  3. 1 - Output Shaft 1
  4. 2 - Output Shaft 2
  5. 3 - Output Shaft 3
