Transmission, Transporting

Special tools and workshop equipment required

• Transmission Support Jig :3336
• Shop Crane :VAS6100

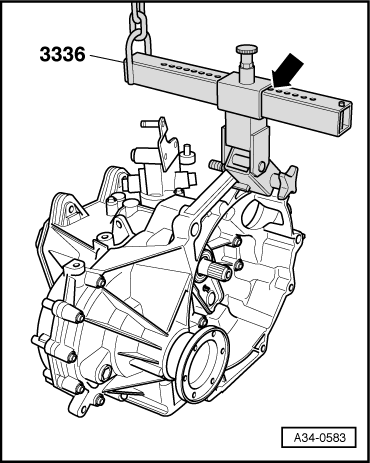

-- Attach the :3336  to the clutch housing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the support arm on the sliding bar using the locking bolt -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Number of visible holes = 6.

-- Lift the transmission using the :VAS6100  and the :3336  .

-- Set the transmission down, for example, into the transport container.
