Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Holding Fixture :VW313
• Press Plate :VW401
• Press Plate :VW402
• Press Piece - Rod :VW412
• Gearbox Support :3221  (modifying. Refer to SECURING ON ENGINE AND TRANSMISSION HOLDER, FASTENING HOLE LOCATED ON SIDE OF TRANSMISSION ) or
• Gearbox Support :3221A
• Guide Pin :T10079

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Not needed: Press Piece - 31.5 mm :VW418A
• Press Piece - Rod :VW407
• Bearing Installer - Wheel Bearing/Ball Bearing :3074
• Press Piece :T10080
• Press Piece - Block :T10083
• Press Piece - Block - Washer :T10083/1
• Shop Crane - Drip Tray, for example :VAS6208

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Press Plate :VW402
• Subframe Support Tool - Press Piece :3290/1
• Press Piece - Bushing - 50 mm Diameter :VW431
• Subframe Bushing Tool Kit :3301
• Press Piece - Multiple Use - Spacing Sleeve :VW472/2
• Valve Guide/Clutch Release Push Rod Seal Drift :10-206

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

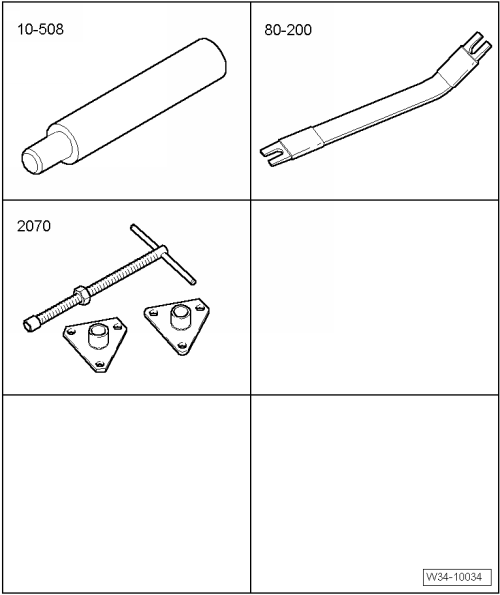

• Assembly Mandrel for Gear Selector Rod :10-508
• Pry Lever :80-200
• Spring Strut Compressor :2070

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

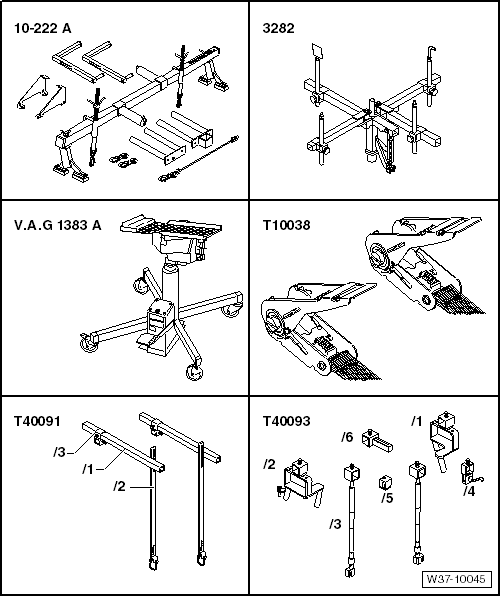

• Engine Support Bridge :10-222A
• Transmission Support :3282
• Transmission Support Elements (determine when mounting the Adjustment Plate on the Transmission Support)
• Engine and Gearbox Jack :VAS6931
• Tensioning Strap :T10038
• Engine Support - Basic Set :T40091
• Engine Support - Supplement Kit :T40093A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Window Release Tool :T10236
• Press Piece - Multiple Use :VW412
• Over-Center Spring Assembly Tool :T10178  or flat iron, 200 x 25 x 5 mm
• Engine Support Bridge - Engine Support 25 :10-222A/25  or flat iron, 350 X 30 X 5 mm
• - 4- = Puller - Counter stay, for example :Kukko 22/4
• Wedge :T10357

Special tools and workshop equipment required

• Connecting Pin :T10027A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Socket - Xzn 14 :T10061

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Block :T10083

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece :T10085

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Breather Tube Tool :T10203

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Holding Fixture - Gearbox Adapter :T10235

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Window Release Tool :T10236

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Hose Clip Pliers :VAG1275A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Torque Wrench 1331 5-50 Nm :VAG1331

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Shop Crane :VAS6100

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Holding Fixture :VW313

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Shift Rod/Alternator :VW423

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Multiple Use Spacer Sleeve :VW472/2

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Holding Fixture :VW540

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -2- Puller - Kukko Puller - 60-150 mm Width, 200 mm Length :Kukko 18/1

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• -3- Puller - Kukko Quick Action Separating Tool - 12-75mm :Kukko 17/1

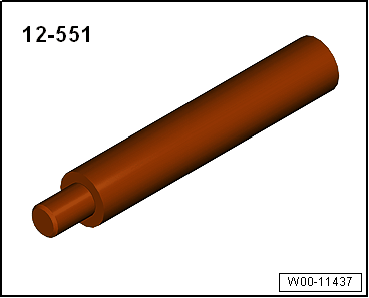

• Centering/Press Pin :12-551

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Pad :30-555

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Bearing Installer - Crankshaft Needle Bearing Mandrel :2026

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Driver Set :3066

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Press Piece - Pivot Mount Bushing :3124

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• or Gearbox Support :3221A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Transmission Support - Mounting Plate 31 :3282/31

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Transmission Support - Pins 45 :3282/45

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Transmission Support Jig :3336

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Triple Square Socket Driver :3357

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
