Overview - Operating Cables: Notes
NOTE:
Lubricate the bearing areas and the sliding surfaces.

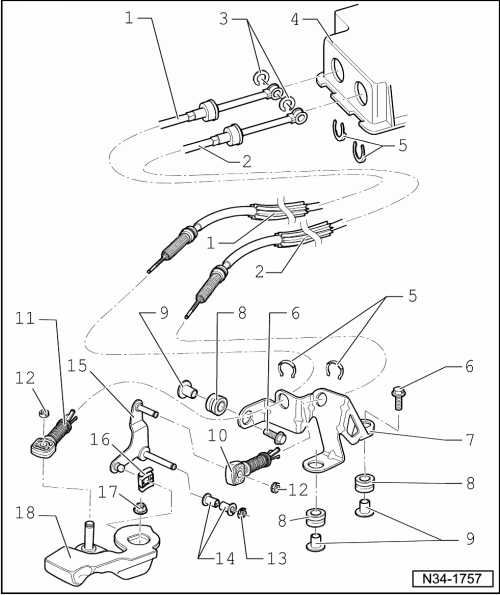

- Gearshift Cable
- Attach to the cable retainer -item 11-.
- Installed position. Refer to SELECTOR MECHANISM INSTALLATION POSITION .
- Selector Cable
- Attach to the cable retainer -item 10-.
- Installed position. Refer to SELECTOR MECHANISM INSTALLATION POSITION .
- Lock Washer
- Replace after removing
- Selector Housing
- Lock Washer
- Replace after removing
- Be careful not to damage the cables when removing them
- Hex Bolt
- 20 Nm
- For the cable bracket
- Quantity: 3
- Cable Mounting Bracket
- Can be made of plastic or metal
- Grommet
- Cable mounting bracket to transmission
- Spacer
- Cable Retainer
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- For attaching the selector cable to the relay lever
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different
- Allocation. Refer to 18.
- Cable Retainer
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- For attaching the shift cable to the transmission shift lever
- Do not interchange, cable locking mechanisms for selector cable on linkage lever and for shift cable on transmission shift lever are different
- Allocation. Refer to 18.
- Lock Washer
- Replace after removing
- Not needed for the plastic relay lever
- Lock Washer
- Replace after removing
- Bearing Bushing
- Relay Lever
- Installed position. Refer to Selector Lever/Relay Lever Installed Position .
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- To install, lubricate. Refer to Lubricating the Relay Lever
- Sliding Shoe
- Nut
- 23 Nm
- Replace after removing
- Self-locking
- Gearshift Lever
- Installing. Refer to Installing the Transmission Shift Lever .
- Installed position. Refer to Selector Lever/Relay Lever Installed Position .
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- To install, lubricate. Refer to Lubricating the Gearshift Lever .
