Transmission Identification

The manual transmission 0AF is installed as a 5 gear transmission with the 4-cylinder engine in the Jetta from MY 2015.

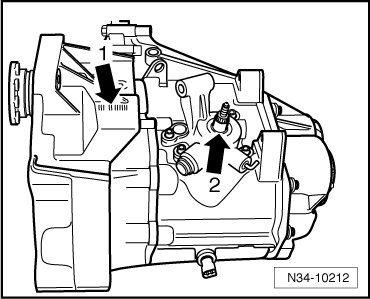

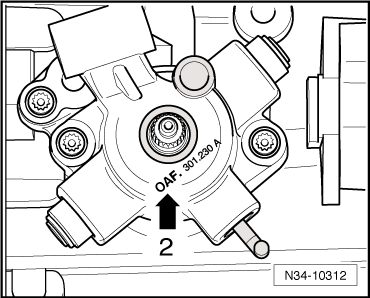

Code Letters and Date of Manufacture -arrow 1- Manual Transmission 0AF -arrow 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

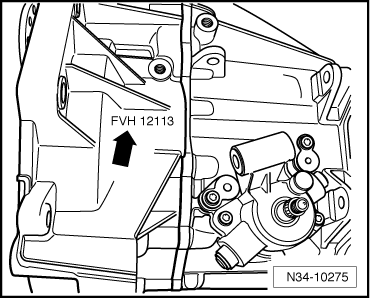

Example:	FVH	12	11	3
I		I	I	I
I		I	I	I
	Codes	Day	Month	Year (2003) of manufacture

For additional data and information contact the factory.

NOTE:

The transmission code is also listed on the vehicle data label.
