Lower Control Arm, Removing And Installing, Basis: Installing
Install in reverse order of removal. Note the following:

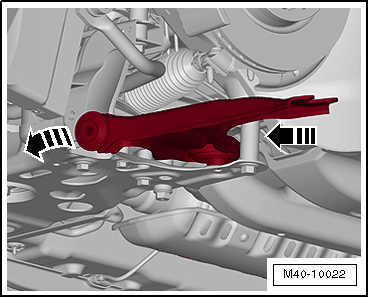

-- Install the rear control arm into the subframe in direction of -arrow- and swivel it forward.

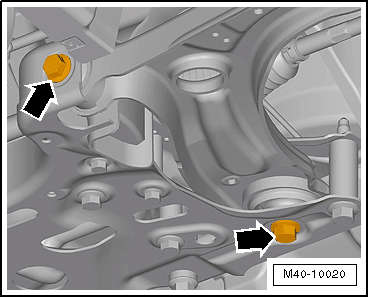

-- Tighten the screws -arrows-.
NOTE:
Tighten the nuts -arrows- in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
Make sure the ball joint boot is not damaged or twisted.
-- Install the front wheel and tighten the bolts. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
