Three-Phase Current Drive
WARNING:
High Voltage May Be Deadly!
NOTE:
Read the information before beginning work on the high voltage system (HV) → HIGH VOLTAGE SYSTEM GENERAL WARNINGS

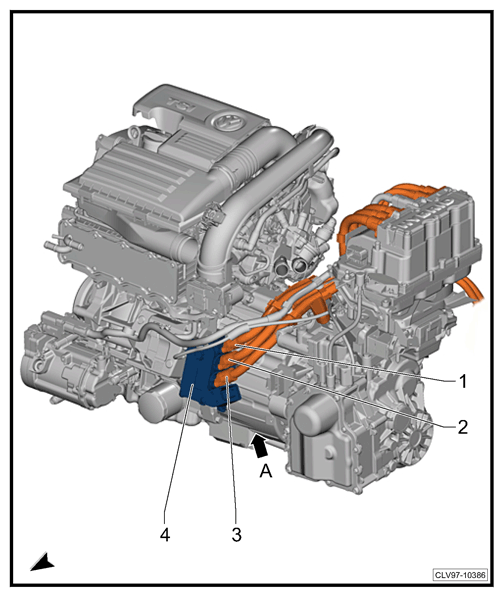

- 1 - Drive motor high voltage cable 1 -P4-
- 1 - Drive motor high voltage wiring harness -PX2-
- 2 - Drive motor high voltage cable 2 -P5-
- 2 - Drive motor high voltage wiring harness
- 3 - Drive motor high voltage cable 3 -P6-
- 3 - Drive motor high voltage wiring harness
- 4 - Three-phrase current drive
