System Overview
WARNING:
High Voltage May Be Deadly!
NOTE:
Read The Information Before Beginning Work On The High Voltage System (HV) → HIGH VOLTAGE SYSTEM GENERAL WARNINGS
- 1

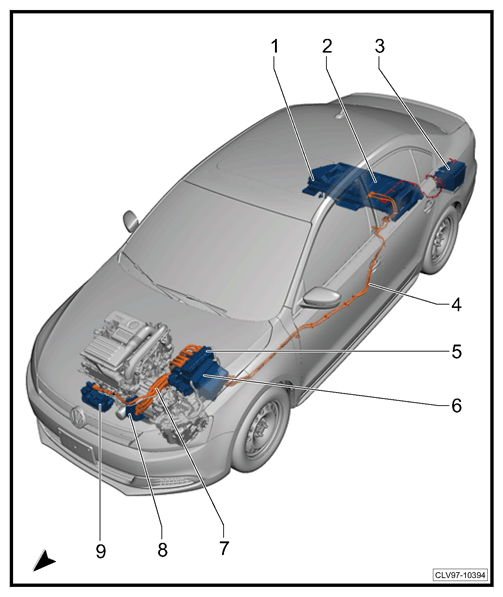

- Battery fan 1 -V457-
- Component location: inside the luggage compartment on the front passenger side
- 2
- Hybrid battery unit -AX1-
- Component location: in the luggage compartment
- 2 - Hybrid battery -A38-
- 3 - Battery -A- → BATTERY -A-
- 4 - Hybrid battery high voltage wiring harness -PX1-
- 5 - Electric drive power and control electronics -JX1- → ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS
- 6 - Remote start connection -TV32- → REMOTE START CONNECTION -TV32-
- 7 - Drive motor high voltage wiring harness -PX2- → THREE-PHASE CURRENT DRIVE
- 8 - Three-phrase current drive -VX54- → THREE-PHASE CURRENT DRIVE
- 8 - Electro-drive drive motor -V141-
- 9 - A/C compressor control module -J842- → ELECTRIC AIR CONDITIONER COMPRESSOR -V470-/CONTROL UNIT FOR AIR CONDITIONER COMPRESSOR -J842-
- 9 - Electric air conditioner compressor -V470-
