Electric Drive Power And Control Electronics
WARNING:
High Voltage May Be Deadly!
NOTE:
Read the information before beginning work on the high voltage system (HV) → HIGH VOLTAGE SYSTEM GENERAL WARNINGS

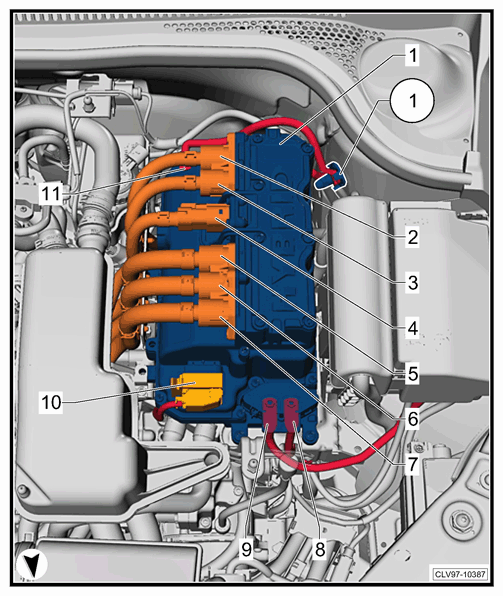

- 1 - Electric drive power and control electronics -JX1-
- 1 - Drive motor inverter -A37-
- 1 - Electrical drive control module -J841-
- 1 - Voltage converter -A19-
- 1 - Intermediate circuit capacitor 1 -C25-
- 2 - Hybrid battery high voltage cable, negative terminal -P2-
- 3 - Hybrid battery high voltage cable, positive terminal -P1-
- 4 - Electrical A/C compressor high voltage cable -P3-
- 5 - Drive motor high voltage cable 1 -P4-
- 6 - Drive motor high voltage cable 2 -P5-
- 7 - Drive motor high voltage cable 3 -P6-
- 8 - Drive motor high voltage wiring harness
- 9 - Drive motor high voltage wiring harness
- 10 - 28-pin connector -T28jx-
- 1 - Ground strap, battery to body
