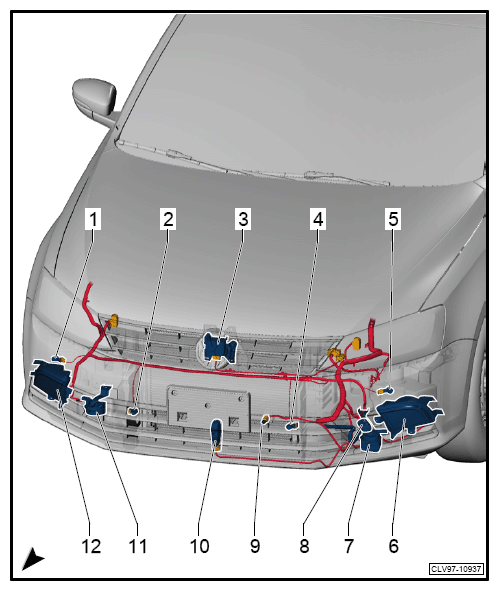

Front Bumper

  1. Right front parking aid sensor -G252-
  2. Right front center parking aid sensor -G253-
  3. Distance regulation control module -J428-
  4. Left front center parking aid sensor -G254-
  5. Left front parking aid sensor -G255-
  6. Left front fog lamp bulb -L22-
  7. Signal horn and dual tone horn -H1-
  8. Exterior socket, 230 V, 110 V -U8-
  9. Outside air temperature sensor -G17-
  10. Radiator shutter motor -V544-
  11. High tone horn -H2-
  12. Right front fog lamp bulb -L23-
G12755322Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
